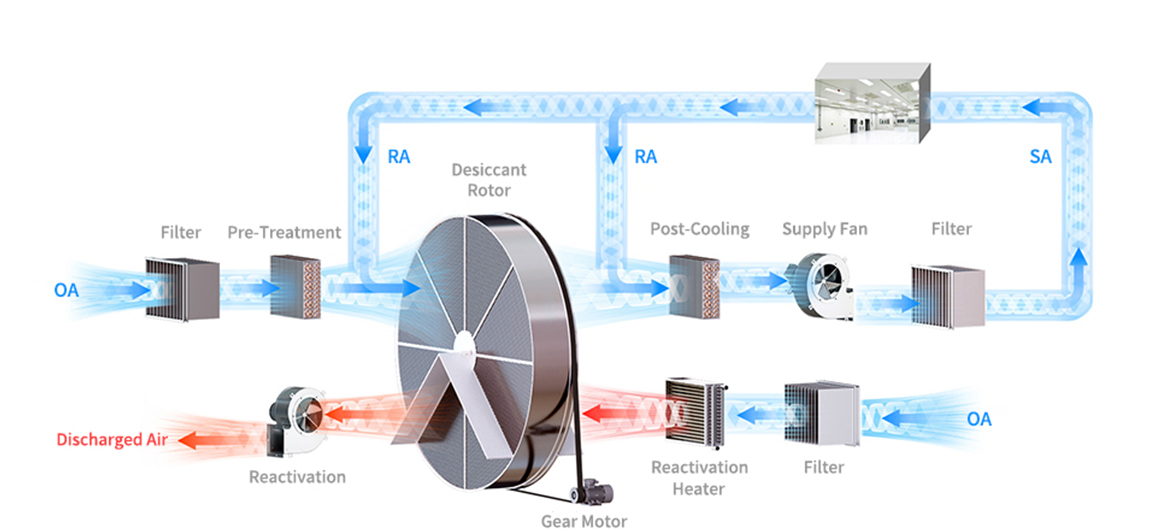

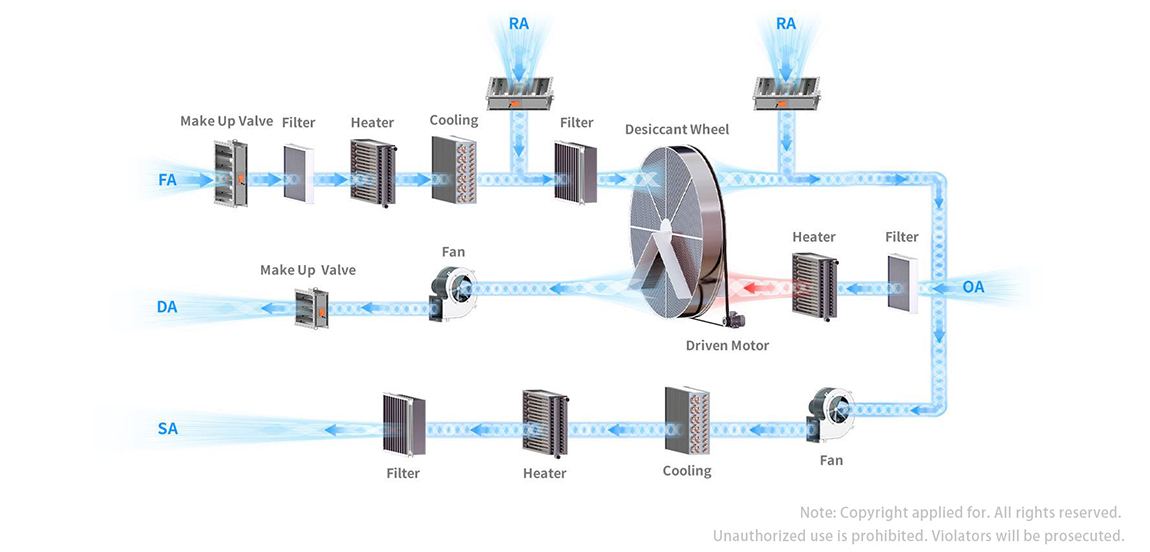

The make up（OA）is cooled by pre-cooling and cooled&dried air is mixed with return air（RA1) and passed through the desiccant rotor,the moisture in the air is absorbed by the desiccant rotor and then combined with return air(RA2), cooled.or.heated by post-cooling&heating to meet temperature demanding from treated area. The supply air (SA) can optionally pass through post filter to achieve cleaness standard specified by specification and finally supply to treated area.
The reactivation temperature is also be adjusted to reach humidity setting copying with requirement, inside and energy saving purpose...
1. SDM1-PLUS series: The integrated system installs desiccant rotor, pre filter pre-cooling, post-cooling HEPA filter etc.
2. The supply air volume can be reach to 14000m3/h for treated room.
3. It is impact design with double-deck chambers occupying a smaller area.
4. The insulation panel with 50mm thickness, sandwich type with standard EN1886 TB2.
5. Thanks to fully multi-seals casing design, Casing leakage with standard EN1886 L1.
6. The internal frame structure guarantees the casing strength meet standard EN1886 D1.
7. Patented pneumatic slide filter with easy maintenance and air tight. The filter’s bypass leakage meets standard of EN1886 F9.
8. The reactivation heater with optional type: electrical, steam.
9. Factory wiring E-box with standard of IP54.
