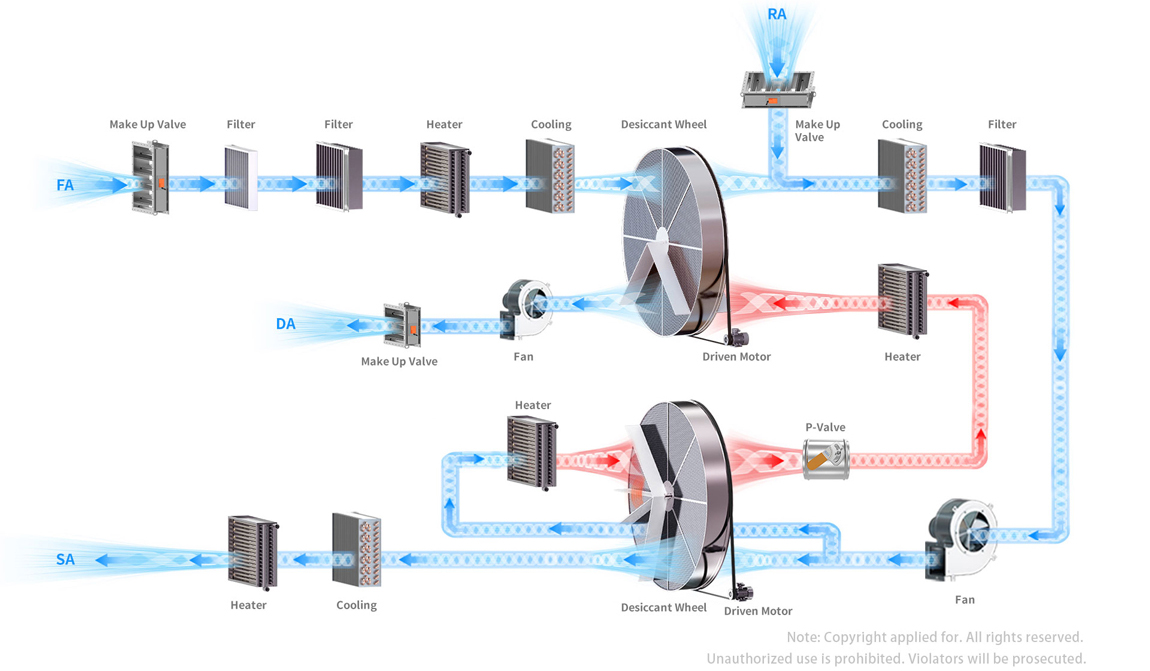

Dryer’s laburaly created and developed this new technology-twin desiccant wheel system in year of 2008。 Now this kind technology has became popularapplication in low dewpoint required project. The system is more energy saving both from reactication heating and also less demanding for unreasonable treating make up air in low temperature.
1. The integrated system with twin desiccant wheels is suitable treating both make up air and return air (dry air), system can reach low dewpoint to -80 Dpt with acceptable energy consumption.
2. It is impact design with double-deck chambers occupying a smaller area.
3. The insulation panel with 50mm thickness, sandwich type with standard EN1886 TB2.
4. Thanks to fully multi-seals casing design, Casing leakage with standard EN1886 L1.
5. The internal frame structure guarantees the casing strength meet standard EN1886 D1.
6. Patented pneumatic slide filter with easy maintenance and air tight. The filter’s bypass leakage meets standard of EN1886 F9.
7. The reactivation heater with optional type: electrical, steam.
8. Factory wiring E-box with standard of IP54.
